£11.85
Color

SPECIFICATIONS

Brand Name: ZHUCO

Certification: CE,CCC,CCC,ce

Conventional heating current(Ith): 20A

Current: 20A

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Features: 3 Phase

High-concerned chemical: None

Item Type: SWITCHES

Material: Plastic

Model Number: SZW26-20/0-3.3

Origin: Mainland China

Rated insulation voltage(Ui): 660V

Rated working current(Ie) 1: 20A

Rated working current(Ie) 2: 1A

Rated working voltage(Ue) 1: 440V

Rated working voltage(Ue) 2: 240V

Switch Type: Universal Switch

Use category 1: AC-15

Use category 2: DC-13

ZHUCO SZW26/LW26-20 Ui 660V 20A 3 Phase 12 Screw Terminals 4 Position Selector Changeover Cam Switch 64X64/48X48 mm Panel Mount


Description

1.Product Name:

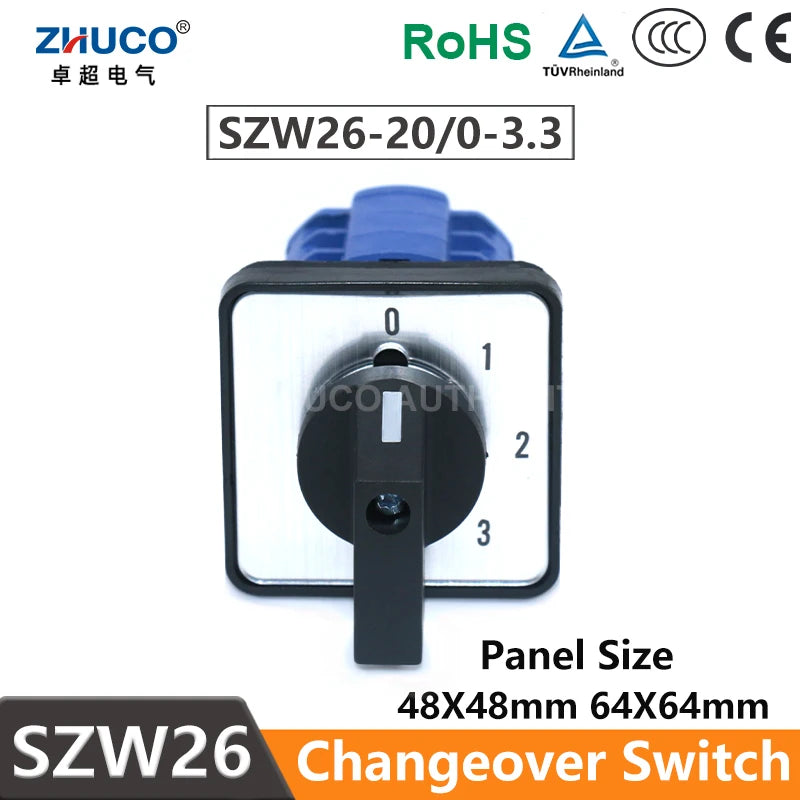

   SZW26/LW26-20/0-3.3 20A 3 Phase Universal Rotary Changeover Cam Switch

2.Specification:

   Lacthing Selector ; Ui: 660V, Ith: 20A ;  3 Phase 12 Terminals

   4 Position (0-1-2-3)

3.Rating :

   AC-15: Ue 440V Ie 20A

   DC-13: Ue 240V Ie 1A

4.Panel size:48 x 48 mm,Install Size:36 x 36mm

   Panel size:64 x 64 mm,Install Size:48 x 48mm

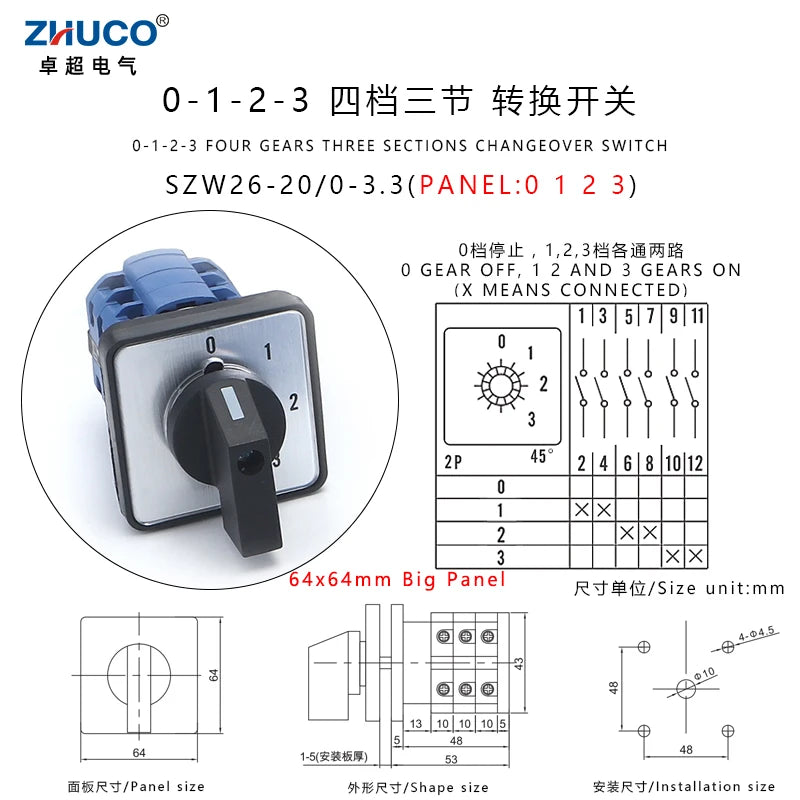

5.which terminal will be connected in different position , please read the wiring diagram as a reference.

   Position 0 : All terminal disconnected

   Position 1 : 1-2 , 3-4

   Position 2 : 5-6 , 7-8

  Position 3 : 9-10 , 11-12

6.Material:

 Flame retardant PC material, high temperature resistance;  Premium copper parts with silver alloy point.

7.Suitable for the thickness between 1mm to 5mm of the mounting board.

8.Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.

9.Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
