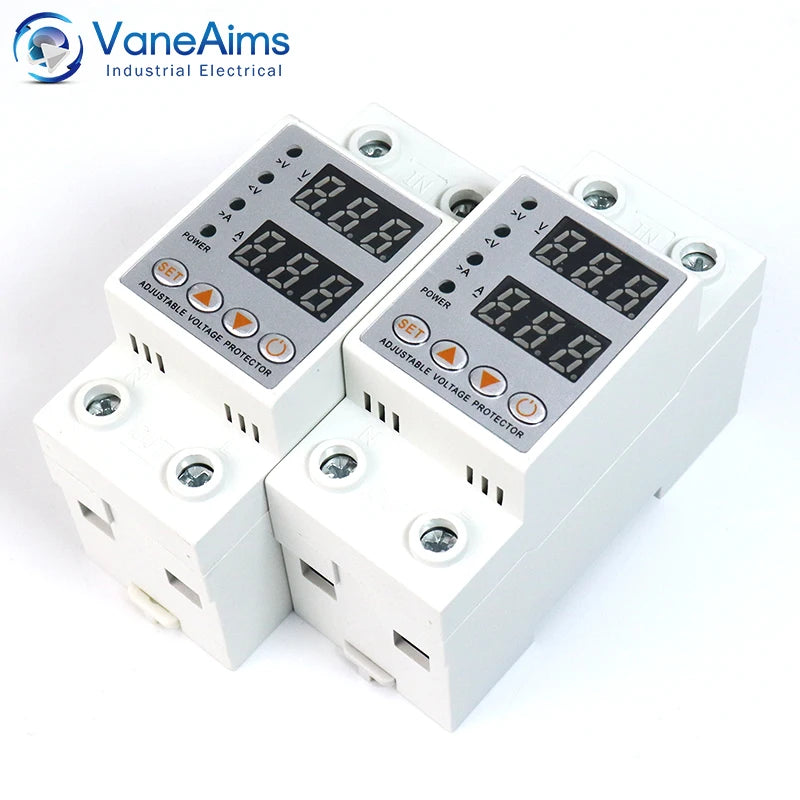

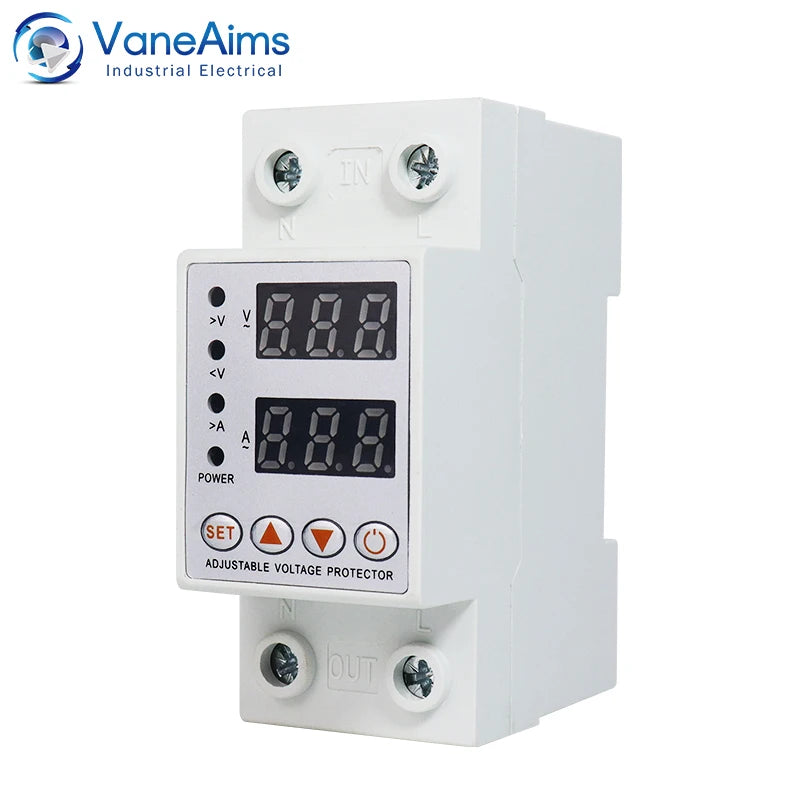

40A 63A AC 220V Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay
40A 63A AC 220V Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay
SPECIFICATIONS
Brand Name: VaneAims
Choice: yes
Feature 1: voltage relay 220v
Feature 2: voltage relay
Feature 3: din rail relay
Feature 4: voltage control relay
Feature 5: over voltage protection
Feature 6: 220v Relay Voltage Protector
Feature 7: protection relay
Feature 8: 220V AC Relay Voltage Protector
High-concerned chemical: None
Is Smart Device: No
Model Number: CH-40A / CH-63A
Origin: Mainland China
Type: Mini,Voltage relay,Voltage protector
semi_Choice: yes

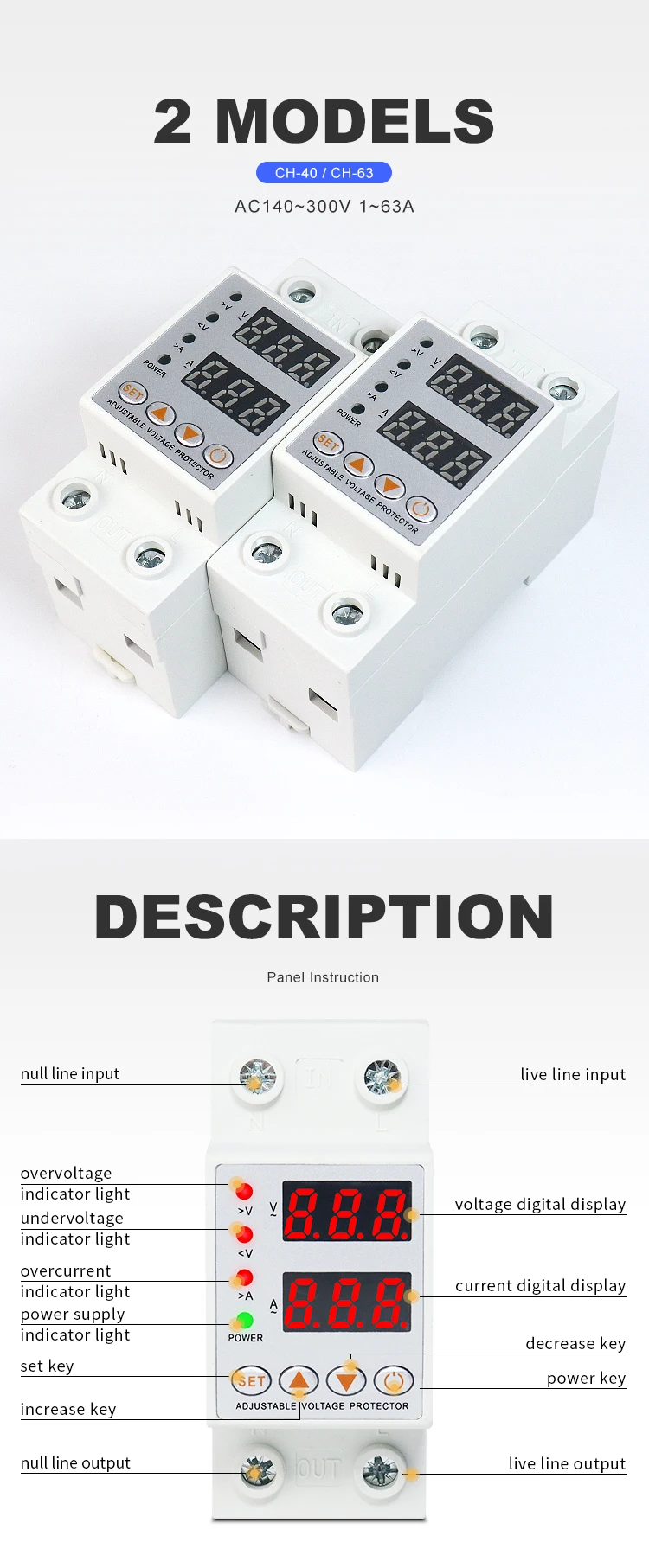

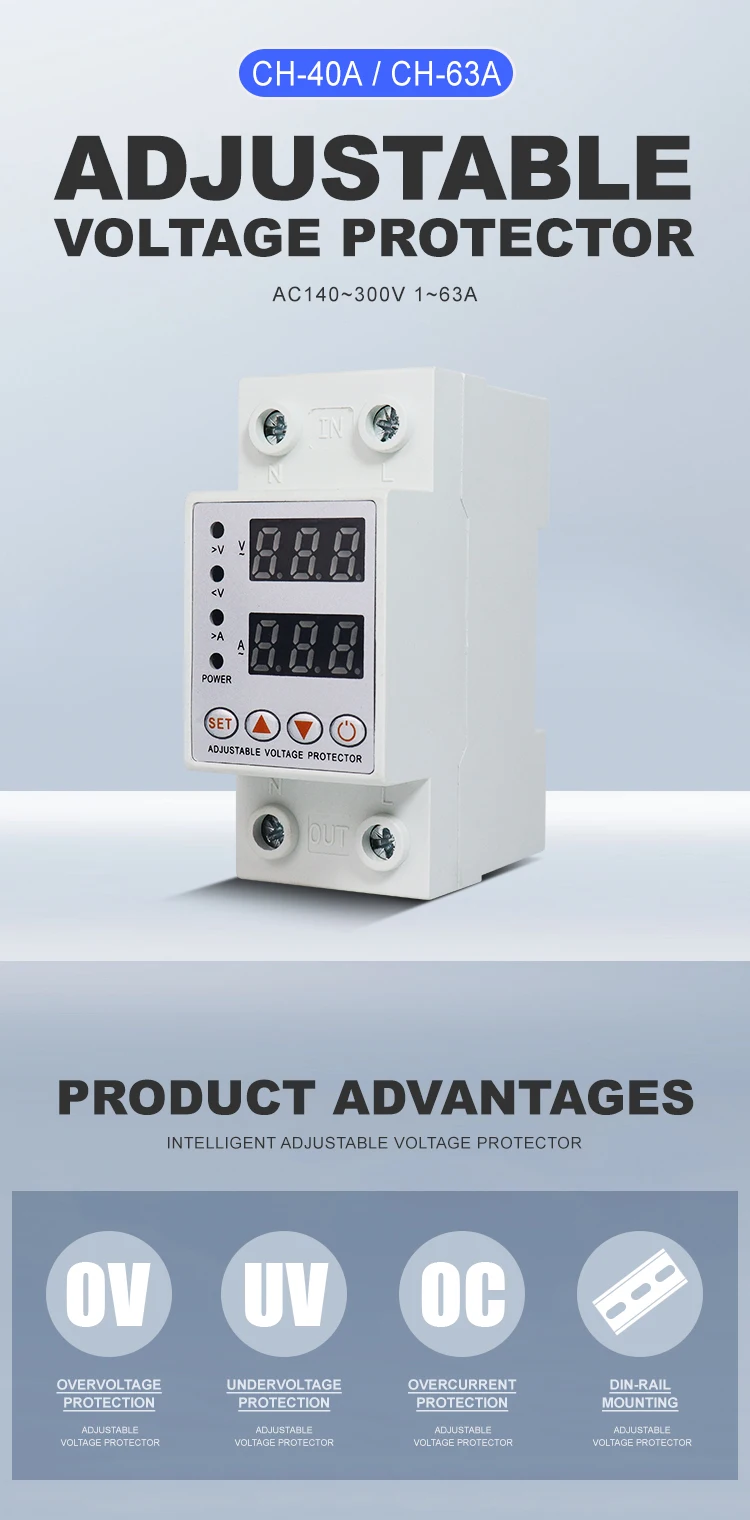

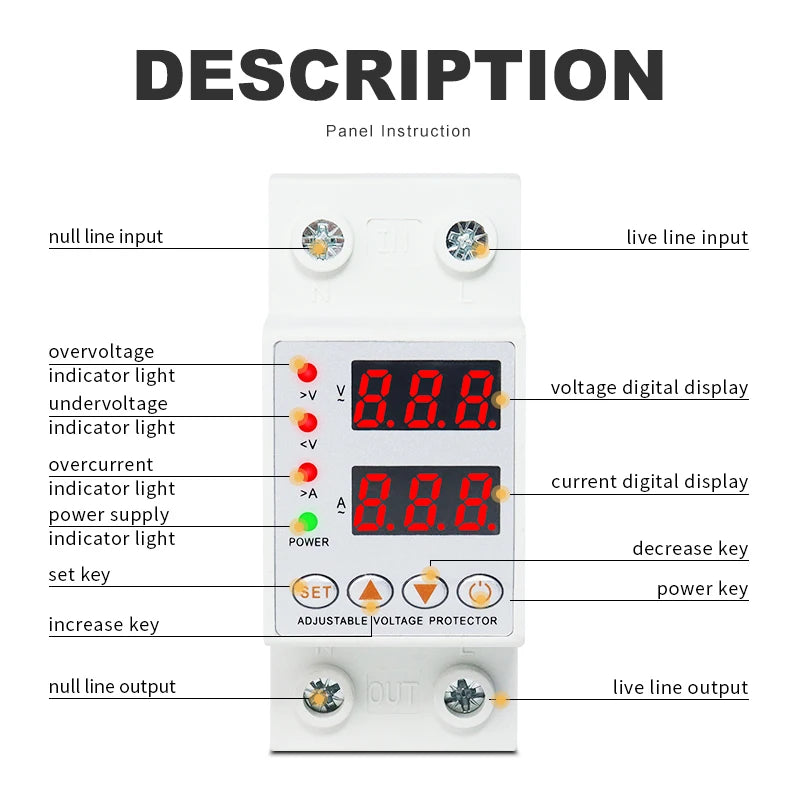

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage digital display(voltage measurement)
6.Current digital display (current measurement)
Product Parameters:
1.Model number:CH-40A / CH-63A
2.Power supply:AC220V 50Hz
3.Max.Loading power: AC1~40A Adjustable(default:40A)
AC1~63A Adjustable(default:63A)
4.Overvoltage action cut-off value: 240V-300VAC can be set as a section (default 270VAC)
5.Undervoltage action cut-off value: 140V-200VAC, adjustable (default 170VAC)
6.Overcurrent action cut-off value: 63A: 1A-63A can be set as a section (default 63A) / 40A: 1A-40A can be set as a section (default 40A)
7.Power on and power off delay time: 5-300S adjustable (default 30S)
8.Startup delay time: 1-300S adjustable (default 5S)
9.Reset delay time after overcurrent protection: 30-300S adjustable (default 30S)
10.Delay time for product overcurrent: 6s (overcurrent time greater than this time will be confirmed as overcurrent and protected)
11.Self power consumption: ≤ 2W
12.Electrical and mechanical life:>100000 times
Application:
When the voltage is too high or too low or the current is too high, it can cut off the power and protect the equipment.
